Large Scale Chemical Plant PP Demister Pads Project
Recently, one USA customer has signed a contract with our company for a batch of large-diameter PP demister pads. These demister products are primarily used for replacement in desulfurization towers.
The main technical parameters as follows:
Product | Demister pad |
Pad material | PP |
Grid material | 316L |
Wire diameter | 0.3mm |
flow medium | Liquid Phase: Droplets Gas Phase: Flue Gas |
Droplet Separation Diameter | ≥ 5 μm |
Capture Efficiency | 99% |
Maximum Operating Temperature | 80℃ |
Desulfurization Tower Inner Diameter | Diameter 9300mm |
Pad height | 150mm |
Demister height | 200mm |
Installation Manhole | DN800 |
The above demister pads are installed at the top of the desulfurization tower to separate droplets from the flue gas, ensuring that the outlet dust concentration does not exceed 5 mg/Nm³. The demister material is PP, the grids are made of 316L stainless steel.

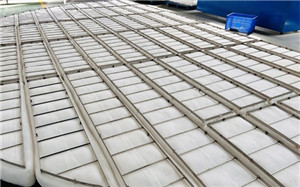

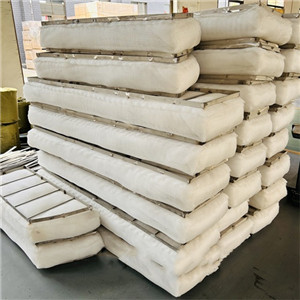

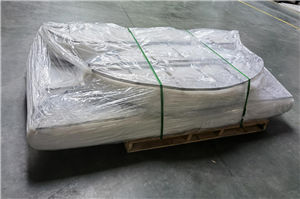

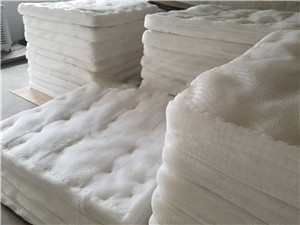

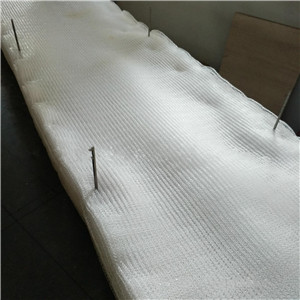

Below are the demister pads manufacturing pictures
