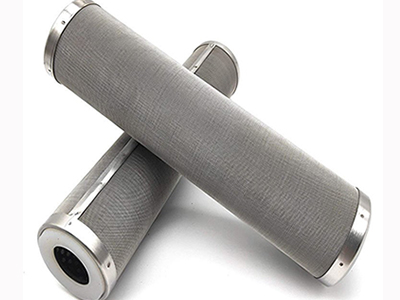

Combination metal screens filter tubes also known as wire mesh with support screen cylindrical filters, there are two different combination filter cylinders designs frequently use, one is perforated sheets or expanded metal outside with wire mesh inside, the other one is wire cloth outside with perforated metal or expanded mesh inside. These types filter tubes have excellent durability, corrosion and heat resistance, and have simultaneously certain impact resistance and high filtering efficiently.

WEB WIRE MESH can offer wire mesh with support screen cylindrical filters in standard specifications, the diameter size range from 20 mm normal and up available, and manufactured length are between 20 mm to 1000 mm. The filter tubes are commonly construction with materials of grade 304 and grade 316 stainless steel.

Benefits

Strong and durable

Sufficient open area

High pressure differential

Filtration rating from 5 micron and up

Simple to install and replace

Materials

Plain steel: low carbon steel, mild carbon steel

Stainless steel: 201, 202, 304, 304L, 316, 316L, 321

Copper: brass, copper, phosphor bronze

Applications

“Y” type strainers

Hydraulic systems

Waste water treatment

Types

Perforated metal outside with wire mesh inside

Perforated metal inside with wire mesh outside

Expanded metal outside with wire mesh inside

Expanded metal inside with wire mesh outside

When ordering or requesting a quote for combination metal screens filter tubes, please specify:

Number of pieces

Types e.g. Perforated metal outside with wire mesh inside

Diameter e.g. 70 mm

Length e.g. 136 mm

Material e.g. Grade 304 stainless steel
