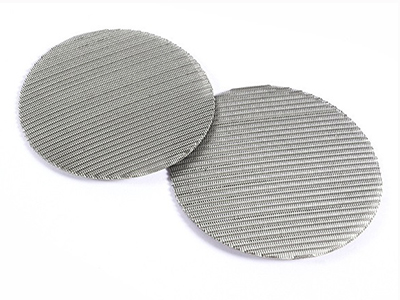

Sintered filter discs also known as diffusion bonded wire mesh filters, the sintered mesh is composite of multiple layers of different stainless steel wire mesh by diffusion bonding process (under heat and pressure conditions), the result is that all wire in the mesh are locked and secured, eliminating loose wires and increasing the stability of the cloth. Its comprehensive property is superior to sintered non woven media.

WEB WIRE MESH can offer a range of sintered wire mesh of filtration grades 5 micron, 50 micron, 100 micron and further, and they are produced from 3 layer, 4 layer and 5 layer meshes. The sintered filter discs is commonly constructed of materials of special alloys and stainless steel.

Benefits

High rigidity and stability

Heat and wear resistance

Cleanablity and reusability

Good dirt holding capacity

Easy to clean and reusable

Geometrical structure of mesh is preserved

Long service life, therefore reduced downtime

Materials

Stainless steel: 201, 202, 304, 304L, 316, 316L, 321

Applications

Polymers

Oil and Gas

Food & Beverages

Pharmaceutical

Fluidized materials handling

Types

Round/circular shape, rectangular shape

When ordering or requesting a quote for sintered filter discs, please specify:

Number of pieces

Shape e.g. Round

Diameter e.g. 105 mm

Layer e.g. 5 ply

Material e.g. Grade 304 (1.4301)
