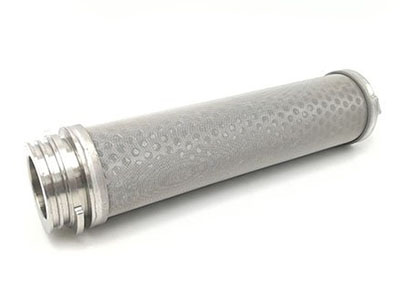

Stainless steel filter cartridges also known as candle filters, the filter elements are made of single layer or multilayer of stainless steel wire cloth or sintered wire mesh, with perforated support center tube and plated steel end rings by welding process or adhesive bonding process, available in a cylindrical or pleated design. Single open ended or double open ended can be manufactured upon request. Our pleated and cylindrical filter cartridges are perfect for back flushing and repeated cleaning, widely used for finest filtration of high molecular polymer, oil, gas and water treatment.

WEB WIRE MESH can offer pleated and cylindrical filter cartridges in standard specifications, the filtration rating as low as 2 μm through 860 μm, the diameter range from 66 mm to 140 mm, and manufacture length up to 1016 mm. The filter strainers are commonly constructed with materials of 304 or 316 stainless steel.

Benefits

High temperature filtration

Increase filter area

High porosity rate

Good dirt holding capacity

High differential pressure

Low maintenance costs

Cleanable and reusable

Long service life

Materials

Stainless steel T 300 series : Grade 304, Grade 304L, Grade 316, Grade 316L, Grade 321

Applications

Hydraulic Oil

Viscous fluid

Clarify filtration

Polymer filtration

Waste water treatment

Types

When ordering or requesting a quote for stainless steel filter cartridges, please specify:

Number of pieces

Outside diameter e.g. 2 5/8”

Inside diameter e.g. 2 1/2”

Length e.g. 508 mm

Material e.g. Grade 304 (1.4301)
