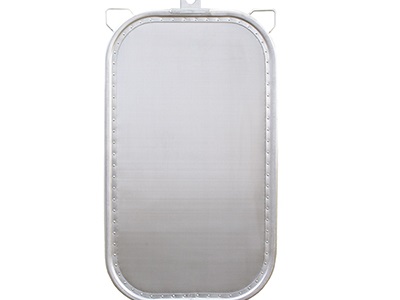

Filter leaves also known as pressure leafs and frame filters, the discs filter are manufactured 3 layer, 5 layer and 7 layer of different stainless steel wire mesh, the inner layers are coarse meshes for support of outer layers, while the outer filtering wire meshes are fine plain weaves or dutch weaves for fine filtration. The multiple layers wire mesh are held together by a stainless steel or aluminum frame, while made leak proof by machine riveting. They are widely used in a pressure leaf filters equipment for concentration filtration.

WEB WIRE MESH can offer filter wire mesh is available in a wide range of shape and size, such as round/circular shape, fan shape and rectangular shape. The leaf disc filter is commonly constructed with materials of 304 stainless steel or 316 stainless steel.

Benefits

High strength

High flow rates

Leakage-free sealing

Robust and durable

Simple to install

Long service life

Materials

Stainless steel: 201, 202, 304, 304L, 316, 316L, 321

Nickel: Cr20Ni80, Nickel 200, Monel 400

Applications

Iron ore concentrate filtration

Sulphuric acid plant

Brine filtration

Vegetable oil filtration

Waste water treatment

Pharmaceutical & diopharmaceutical

Types

Round shape, rectangular shape, fan shape

When ordering or requesting a quote for filter leaves, please specify:

Number of pieces

Shape e.g. Rectangular

Panel size e.g. 1550 x 1778 mm

Layer e.g. 5 ply

Mesh count e.g. 24x110+8+4+8+24x110

Material e.g. Grade 304 (1.4301)
