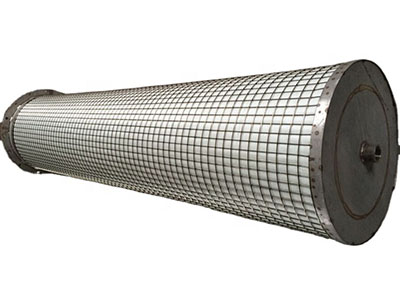

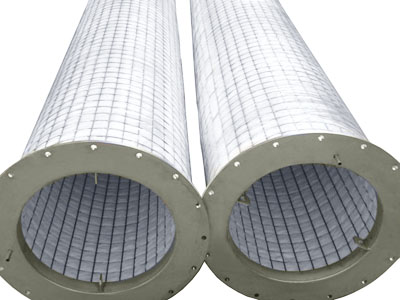

The fiber bed mist eliminators also known as candle filters and fiber bed filters, they are composed of millions of fine fiber which are packed between two concentric cylindrical screens with a top flange and a bottom drain plate. These fiber bed filters are typically a vertical cylinder, are used to remove sub-micron aerosol, mists and soluble solid particles from a gas stream, can meet a wide range of application and industry requirements.

WEB WIRE MESH can offer fiber bed mist eliminator standard specifications, the diameter size range from 200 mm to 890 mm, and manufacture length up to 5080 mm, the fiber bed candle filters are commonly construction with materials of glass, polypropylene or polyester.

How it work?

All mist eliminators operate in a similar manner. The fiber bed filters are installed vertically, and the gas entrained liquid droplets pass in a horizontal direction through the fiber bed. The liquid droplets are collected by inertial impaction and Brownian diffusion, then the liquids are drain off by gravity and the gas emerge from the bed exiting from the top.

Benefits

Increased surface area

Remove mist and small droplets

Prevent contamination of the process

Recover a useful product

Protect valuable downstream equipment

Reduce maintenance costs

Minimize environmental impact

Materials

The packed of fiber beds are available in:

Special glass fiber

Polypropylene fiber

Carbon fiber

The cages using a wide variety of materials:

Stainless steel

Carbon steel

FRP

Polypropylene

Thermal-set plastics

Applications

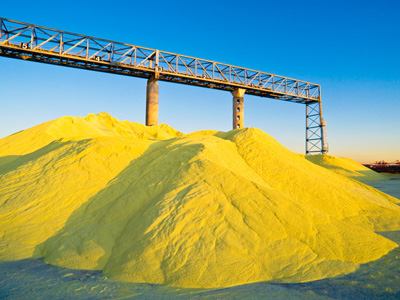

Sulfuric acid/oleum

Plasticizer

Sulphonation

Hydrochloric acid

Nitric acid

Ammonium nitrate

Incinerators

Types of fiber bed mist eliminator

When ordering or requesting a quote for fiber bed filters please specify:

Number of sets

Diameter size e.g. 610 mm

Length e.g. 1500 mm

Material e.g. Polypropylene
